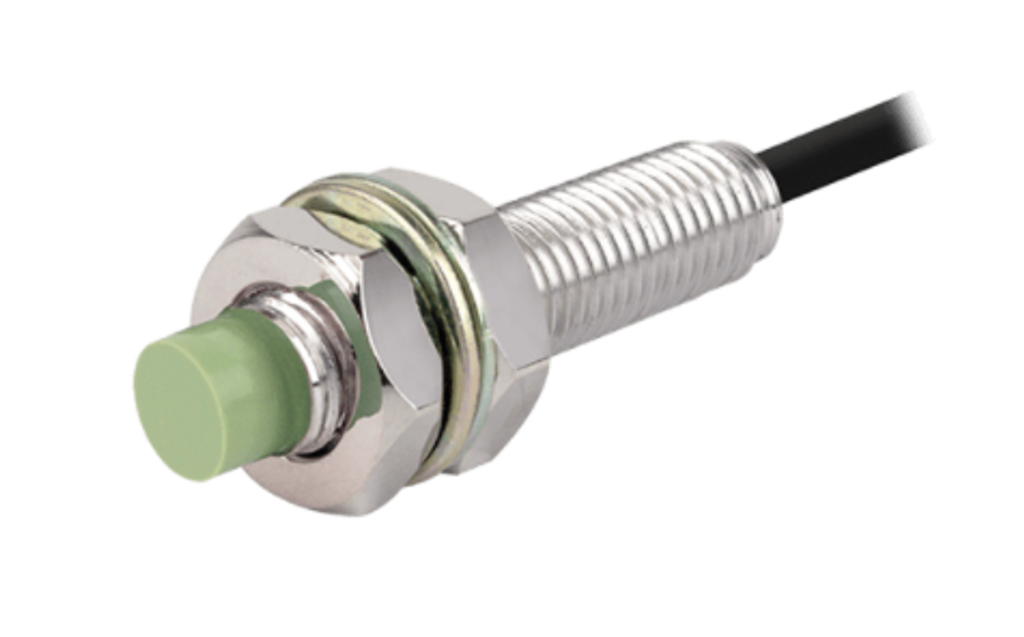

AUTONICS PRL08-2DN (SD:2MM/12-24VDC) PROXIMITY SENSOR
|Wire type and power||DC 3-wire type 12-24VDC|
|Sensing side diameter||M08|
|Standard sensing target||8×8×1mm(iron)|
|Current specification||Current consumption: Max. 10mA|
|Control output||NPN Normally Open|
|Cable Standard/material||Standard cable|
|Body length||Long body|
|Environment_Ambient temperature||-25 to 70℃, storage: -30 to 80℃|
|Environment_Ambient humidity||35 to 95% RH, storage: 35 to 95% RH|
|Hysteresis(distance)||Max. 10% of sensing distance|
|Residual voltage||Max. 2V|
|Weight||Approx. 66g(approx. 54g)|
※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
