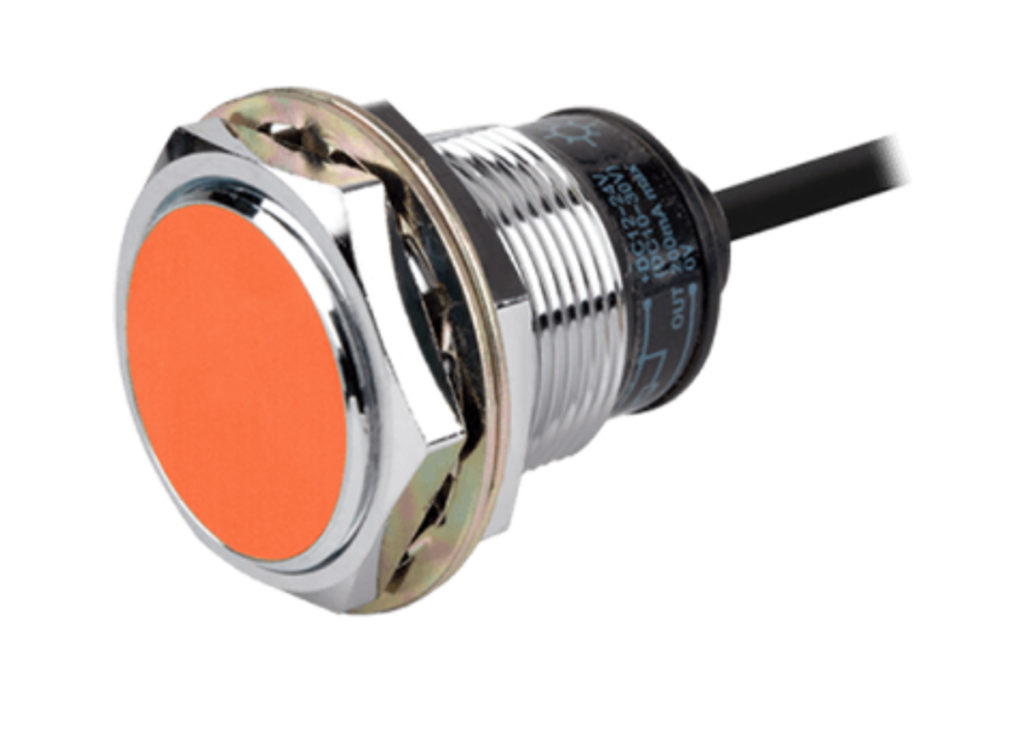

AUTONICS PR30-10DP (SD:10MM/12-24VDC) PROXIMITY SENSOR

Wire type and powerDC 3-wire type 12-24VDC
Sensing side diameterM30
Sensing distance10mm
InstallationShield(flush)
Standard sensing target30×30×1mm(iron)
Response frequency400Hz
Current specificationCurrent consumption: Max. 10mA
Control outputPNP Normally Open
MaterialBrass(nickel plated)
Cable Standard/materialStandard cable
Protection structureIP67
Approval
Body lengthStandard type
Environment_Ambient temperature-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)Max. 10% of sensing distance
Residual voltageMax. 1.5V
WeightApprox. 207g(approx. 170g)

※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※The weight includes packaging. The weight in parentheses in for unit only.
※Environment resistance is rated at no freezing or condensation.
