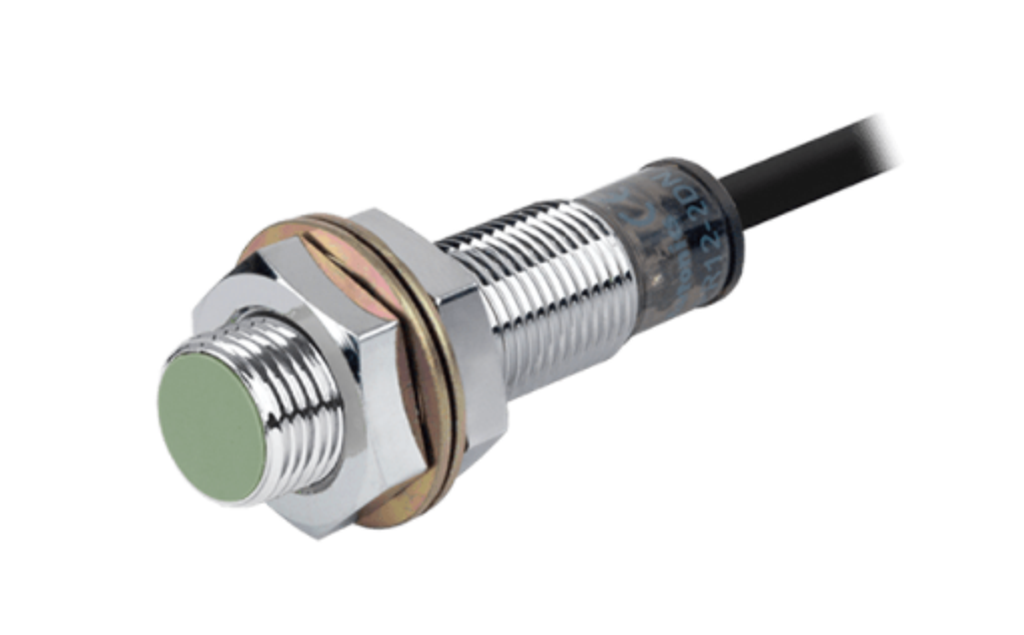

AUTONICS PR12-2DN (SD:2MM/12-24VDC) PROXIMITY SENSOR

Wire type and powerDC 3-wire type 12-24VDC
Sensing side diameterM12
Sensing distance2mm
InstallationShield(flush)
Standard sensing target12×12×1mm(iron)
Response frequency1.5kHz
Current specificationCurrent consumption: Max. 10mA
Control outputNPN Normally Open
MaterialBrass(nickel plated)
Cable Standard/materialStandard cable
Protection structureIP67
Approval
Body lengthStandard type
Environment_Ambient temperature-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)Max. 10% of sensing distance
Residual voltageMax. 1.5V
WeightApprox. 84g(approx. 72g)

※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
