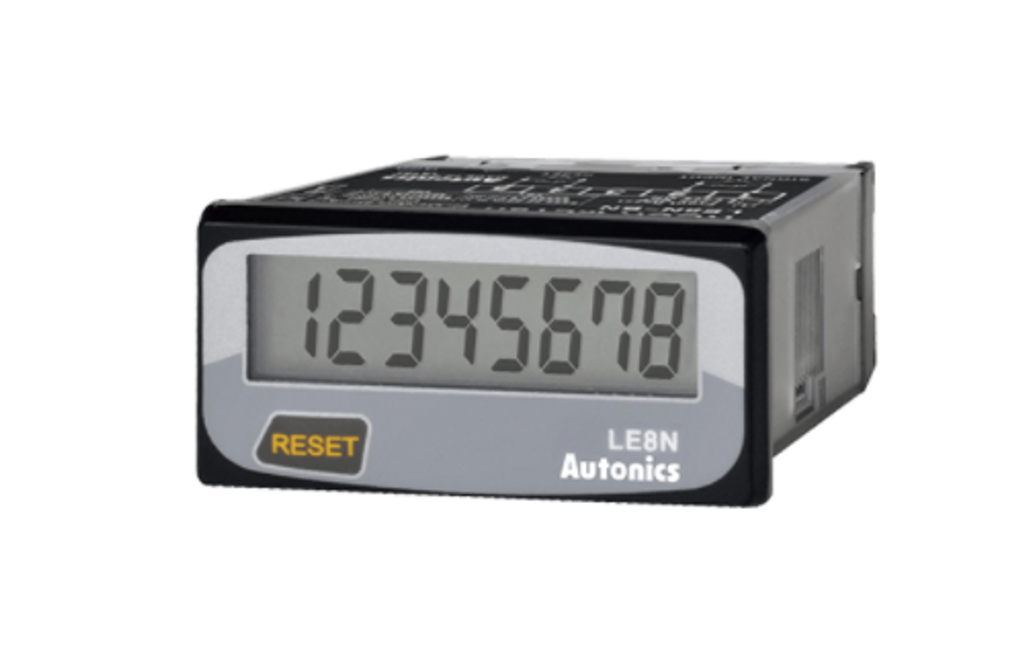

Autonics LE8N-BN 8-digit 7-segment LCD Counter

Display method8-digit 7-segment LCD
Operation methodCount up
Time operationPOWER ON START
TerminalTerminal block
Power supplyBuilt-in battery(over 10 years)
Setting range0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
Input Method_SignalNo-voltage input(NPN)
Input Method_ResetNo-voltage input(NPN)
Control outputIndicator
Protection structureIP66(front panel)
Min. signal WidthSIGNAL, RESET input: Approx. 20ms
External set switchSW1, SW2, SW3
AccessoriesMounting bracket, Rubber waterproof ring
Environment_Ambient temperature-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH
WeightApprox. 96g (approx. 50g)

※SW1 is the front panel RESET key enable/disable set switch.
※SW2 is the time range set switch.
※SW3 is available to select time specification TS1, TS2, or TS3.
※No-voltage input, voltage input: between terminals and the case,
Free voltage input: between the free voltage input terminal and the RESET input terminal, between terminals and the case
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
