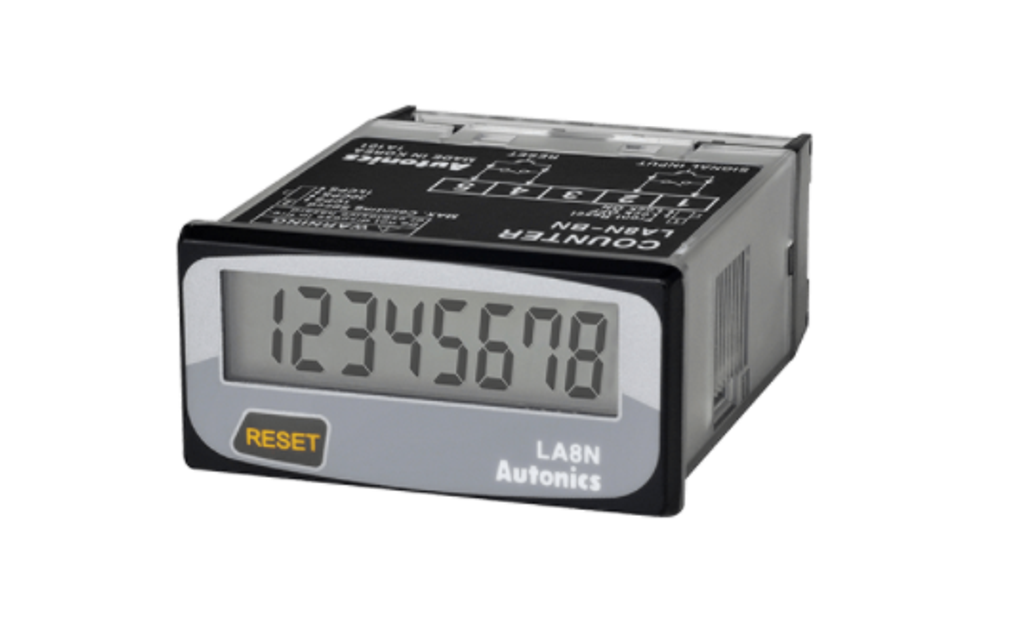

Autonics LA8N-BF 9-digit 7-segment LCD Counter

Display method8-digit 7-segment LCD
Operation methodCount up
TerminalTerminal block
Power supplyBuilt-in battery(over 7 years)
Input Method_SignalFree voltage input
Input Method_ResetNo-voltage input(NPN)
Max. Counting Speed20 [cps]
Min. signal Width20ms
Control outputIndicator
Protection structureIP66(front panel)
AccessoriesMounting bracket, Rubber waterproof ring
Environment_Ambient temperature-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 96g (approx. 50g)

※External setting switch: SW1 is the front panel RESET key enable/disable setting switch.
※External setting switch: SW3 is the decimal point setting switch.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
