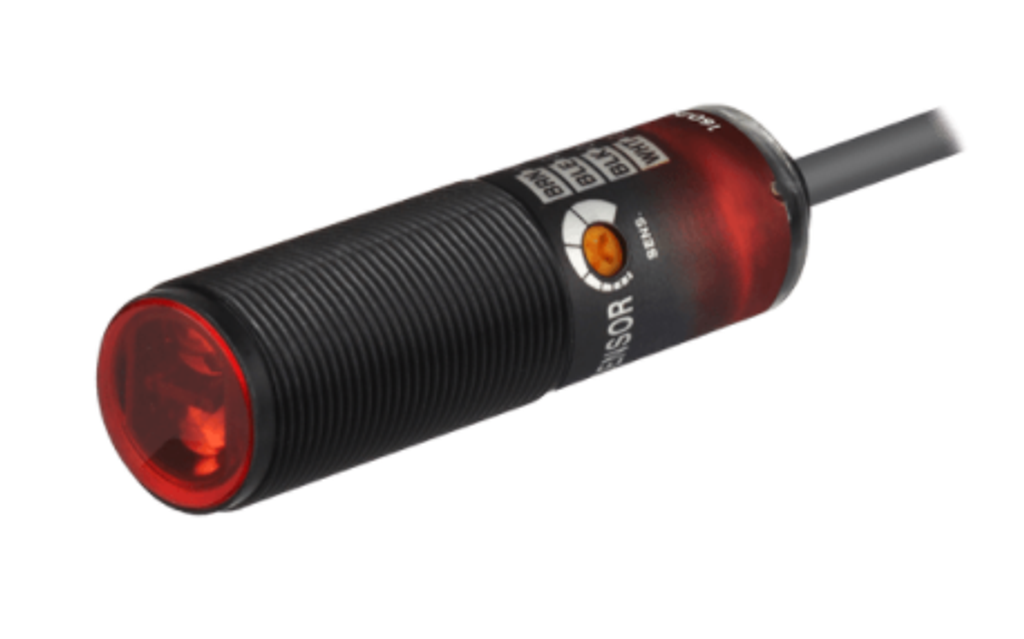

AUTONICS BRQP3M-PDTA (RETROREFLECTIVE TYPE) PHOTOELECTRIC SENSOR

Sensing typeRetroreflective type(built-in polarizing filter)
Sensing distance3m
Sensing targetOpaque material of min. Ø75mm
Light sourceRed LED(660nm)
Response timeMax. 1ms
Power supply10-30VDC  ±10%(ripple P-P: max. 10%)
Current consumptionMax. 30mA
Sensitivity adjustmentSensitivity adjuster
Operation modeSelectable Light ON or Dark ON by control wire (white)
Control outputNPN open collector
Connection typeØ4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)
(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature-25 to 60℃, storage: -30 to 70℃
Protection structureIP67(IEC standard)
Approval
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
MaterialCase: Polycarbonate
Lens, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_IndividualReflector(MS-2A)
Accessories_CommonM18 fixing nut: 2, adjustment screwdriver
WeightApprox. 120g (approx. 60g)
