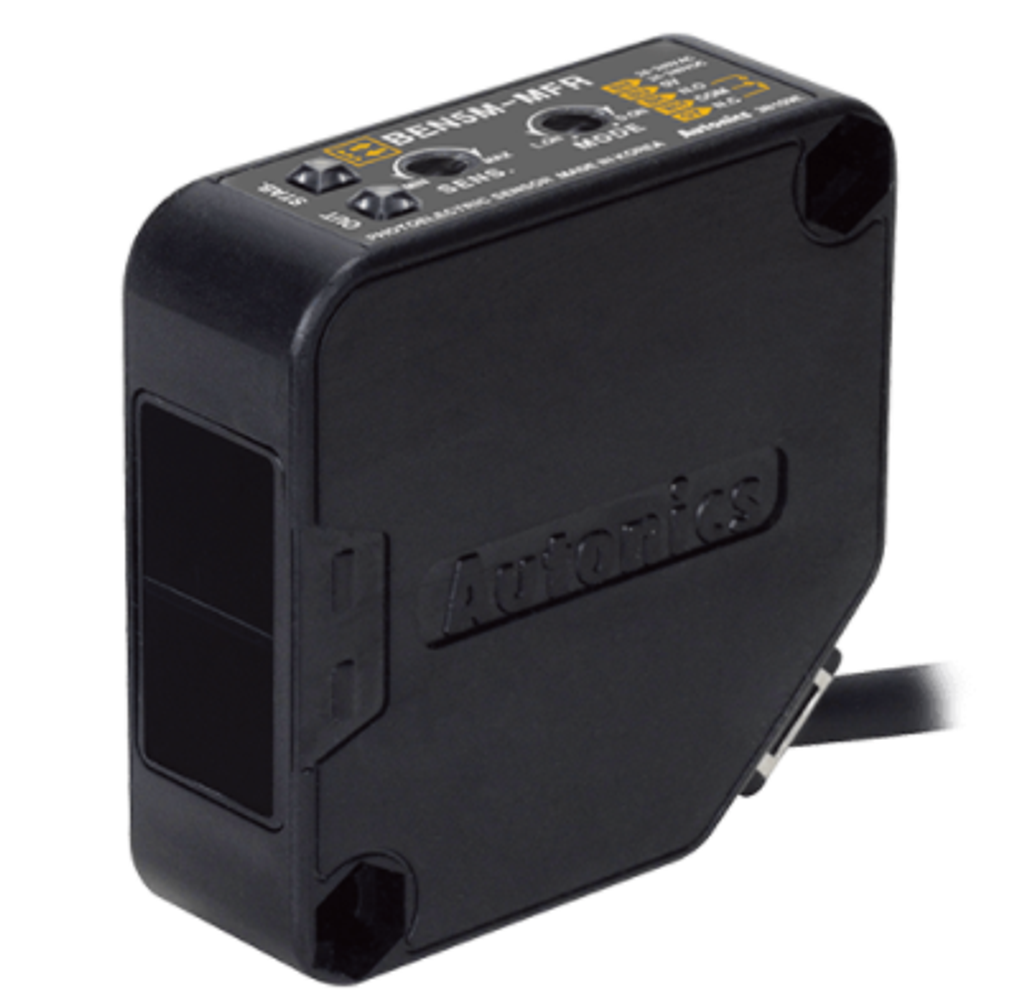

AUTONICS BEN5M-MFR (RETROREFLECTIVE TYPE) PHOTOELECTRIC SENSOR

Sensing typeRetroreflective type(standard type)
Sensing distance5m(MS-2)
Sensing targetOpaque material of min. Ø60mm
Light sourceInfrared LED(850nm)
Response timeMax. 20ms
Power supply24-240VAC~ ±10% 50/60Hz, 24-240VDC  ±10%(ripple P-P: max. 10%)
Current consumptionMax. 4VA
Sensitivity adjustmentSensitivity adjuster
Operation modeLight ON/Dark ON(set by switch)
Control outputRelay
Connection typeCable type(Ø5, 2m)
Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature-20 to 65℃, storage: -25 to 70℃
Protection structureIP50
Approval
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
MaterialCase, Case cover: Heat resistant Acrylonitrile butadiene styrene,
Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),
Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,
Nut: steel chromium molybden
Accessories_IndividualReflector(MS-2)
Accessories_CommonAdjuster driver, Fixing bracket, Bolts, Nuts
WeightApprox. 208g

※The sensing distance is specified with using the MS-2 reflector and the same as the MS-4 reflector. Sensing distance is the setting range of the reflector. The sensor can detect under 0.1m. When using reflective tapes, the reflectivity will vary by the size of the tape. Please refer to the “▣Reflectivity By Reflective Tape Model” table before using the tapes.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
