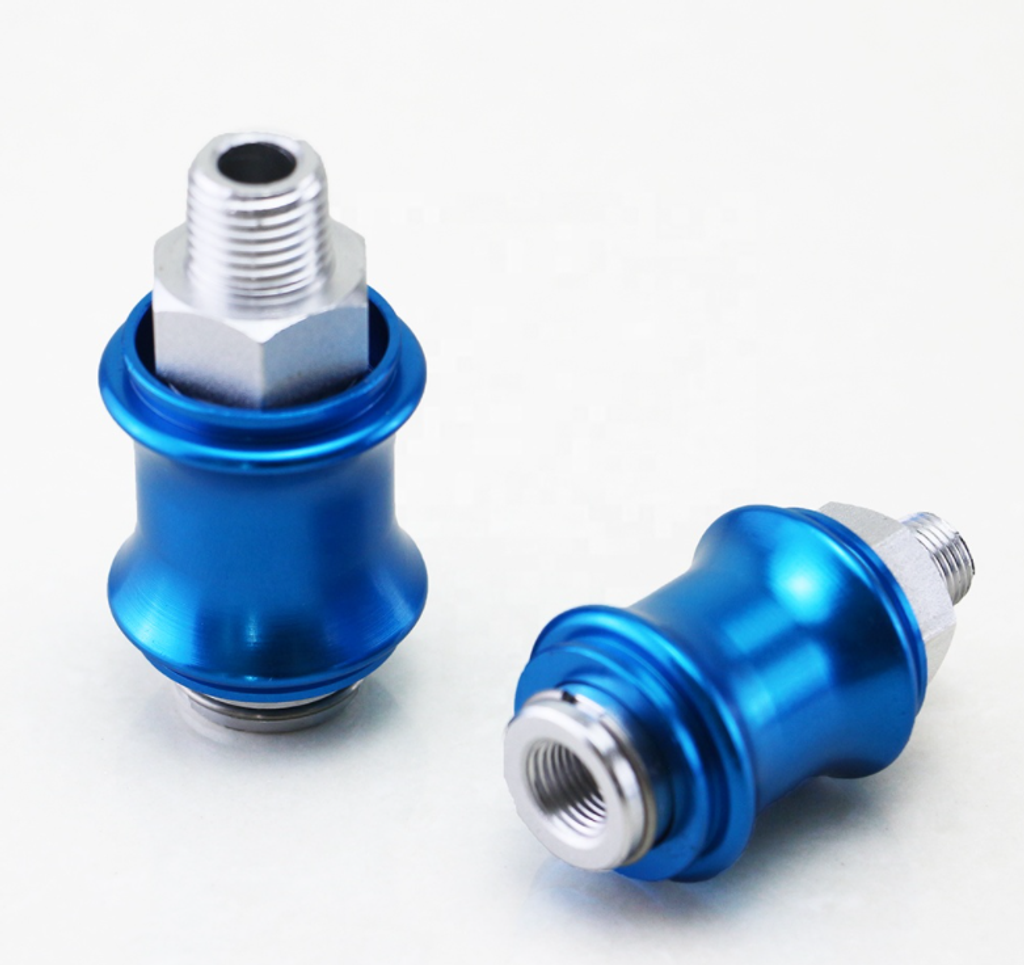

Airtac HSV-06/08/10/15 Hand Slide Valve

RM 19.00
Airtac HSV-06/08/10/15 Hand Slide Valve Ratings: 0 - 0 votes


Product Feature:

  1. There are several ways of internal and external thread connection, suitable for the application in different pipeline systems.
  2. The direction-change slides smoothly and has good hand feeling.
  3. There is large effective circulating area.
  4. The valve spool surface is treated with acid washing passivation, and the surface of valve body is oxidized to keep the color for a long time.

Ordering Code:

Specification:

ModelHSV06HSV08HSV10HSV15HSV20HSV25
FluidAir ( to be filtered by 40 µ m filter element)
OperatingManual Control direct acting type
Port Size1/8”1/4”3/8”1/2”3/4”1”
Orifice Size23.0mm2 ( Cv=1.28)40.0mm2 ( Cv=2.20)62.0mm2 ( Cv=3.50)140.0mm2 ( Cv=7.80)250.0mm2 ( Cv=13.80)392.0mm2 ( Cv=21.78)
Valve Type3 port 2 position
LubricationNot required
Pressure Range0- 1.0MPa ( 0-145psi)
Proof Pressure1.5MPa (215psi)
Temperature-20 -70℃
Material of BodyAluminum Alloy

Dimensions:
